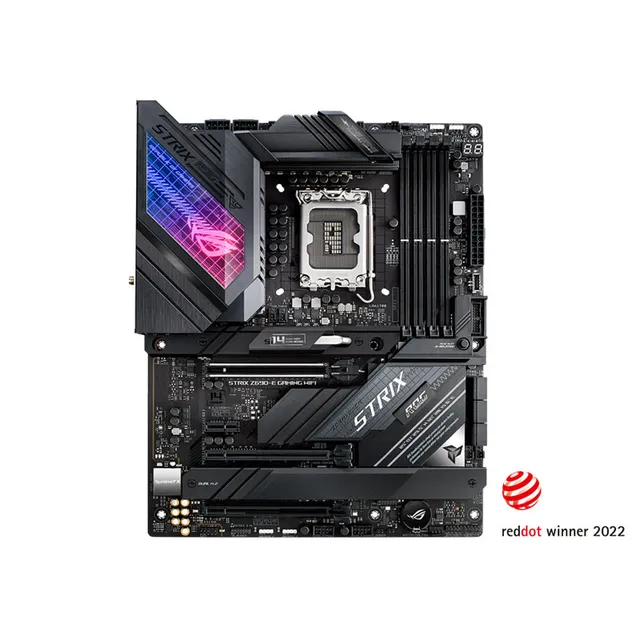

مادربرد ایسوس Asus ROG STRIX Z690-E GAMING WIFI D5

Intel

Z690

Intel® Z690 Chipset

3

دارد

M.2_1 slot (Key M)، type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M)، type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Hyper M.2_1 slot (Key M) via Hyper M.2 card، type 2242/2260/2280/22110***

ندارد

* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5، SATA RAID 0/1/5/10. /// ***** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.

* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5، SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots، type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes) Hyper M.2_1 slot (Key M) via Hyper M.2 card، type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode. Hyper M.2_1 slot (Key M) via Hyper M.2 card، type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) - Intel® 13th & 12th Gen processors support PCIe 5.0 x4 mode. M.2_2 slot (Key M)، type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**** 6 x SATA 6Gb/s ports***** * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5، type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**** Hyper M.2_2 slot (Key M) via Hyper M.2 card، type 2242/2260/2280/22110*** - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode Intel® Z690 Chipset** M.2_3 slot (Key M)

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

دارد

ندارد

ندارد

1 عدد 4 پین ATX 12V، 1 عدد 8 پین EATX 12V، 5 عدد 24 پین ATX مادربرد

Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™، Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

مشکی

DDR5

DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC، Un-buffered Memory*

128GB

4

دارد

12

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A)

2

4

1 x Intel® 2.5Gb Ethernet ASUS LANGuard

3

دارد

دارد

5.2
